Vibrating Screen


Vibrating Screen, Heavy Duty Wire Mesh Screens

 HWNC Heavy Duty Wire Mesh Screens are specially manufactured for extremely rugged operating conditions in scalping, sizing or processing heavy abrasive materials such as ores, crushed stones, sand, gravel, metallic and non metallic minerals, coal slag etc.

We manufacture the below screens in Spring Steel, Mild Steel, GI Wires and Stainless Steel to suite particular applications

Screens are woven accurately to any mesh size and of any diameter wire or rod to meet your specific requirement.

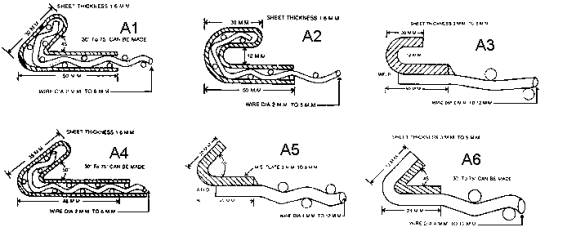

END HOOK STRIP AND EDGE STYLE

End Hook Strip and Edge Style

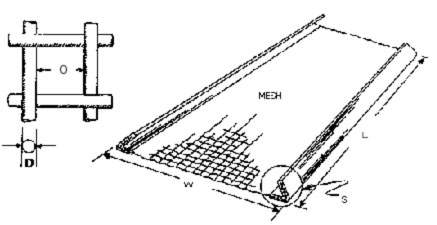

HOW TO SPECIFY WIRE MESH VIBRATING SCREENSWire Mesh Vibrating Screens


INFORMATION REQUIRED ON SCREEN MESH ORDERS
W. Width - Overall (O. A.) outside to outside hooks
L. Length of screen
O. Opening Space between wire.
D. Wire size and type of material
S. Type of edge preparation

ADDITIONAL INFORMATION NEEDED
1. Total Number of pieces
2. For non standard hook, give amount, angle and position on screen
3. If rectangular or long slot, give dimension to which long slot is parallel



Perforated Plates

Screen Cloth Panel

Woven Wire Screen

Wire Mesh
